IP-COM F1109P-8-102W
SWITCH (สวิตซ์) IP-COM F1109P-8-102W 9-Port Fast Unmanaged Switch With 8-Port PoE 10/100M

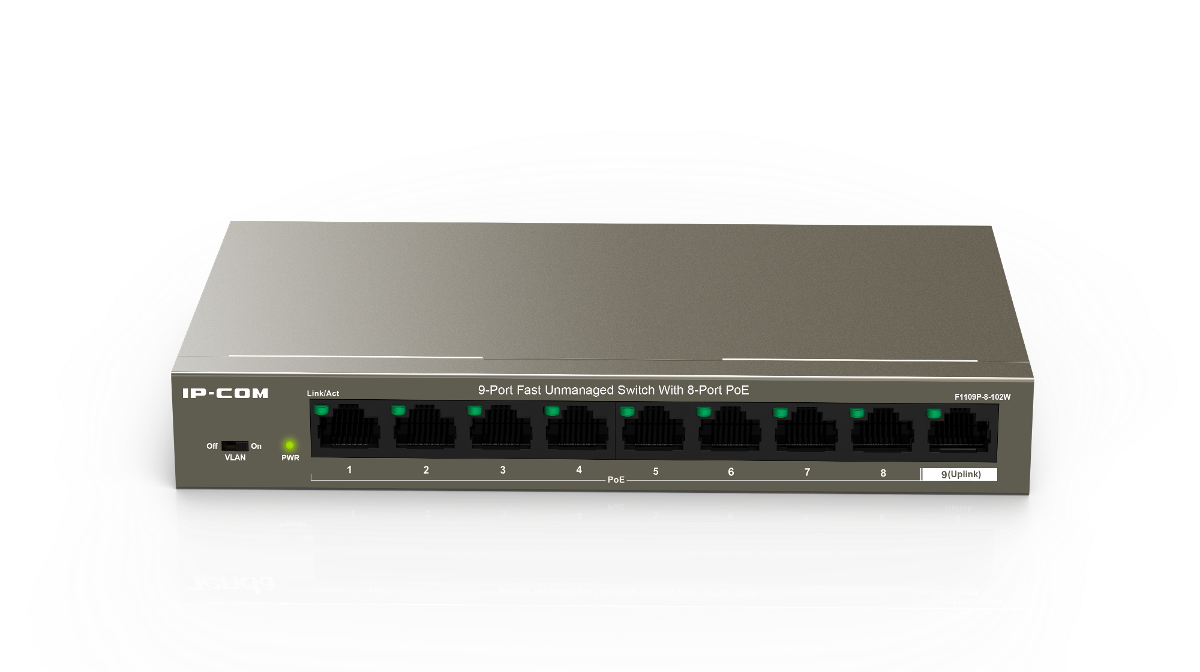

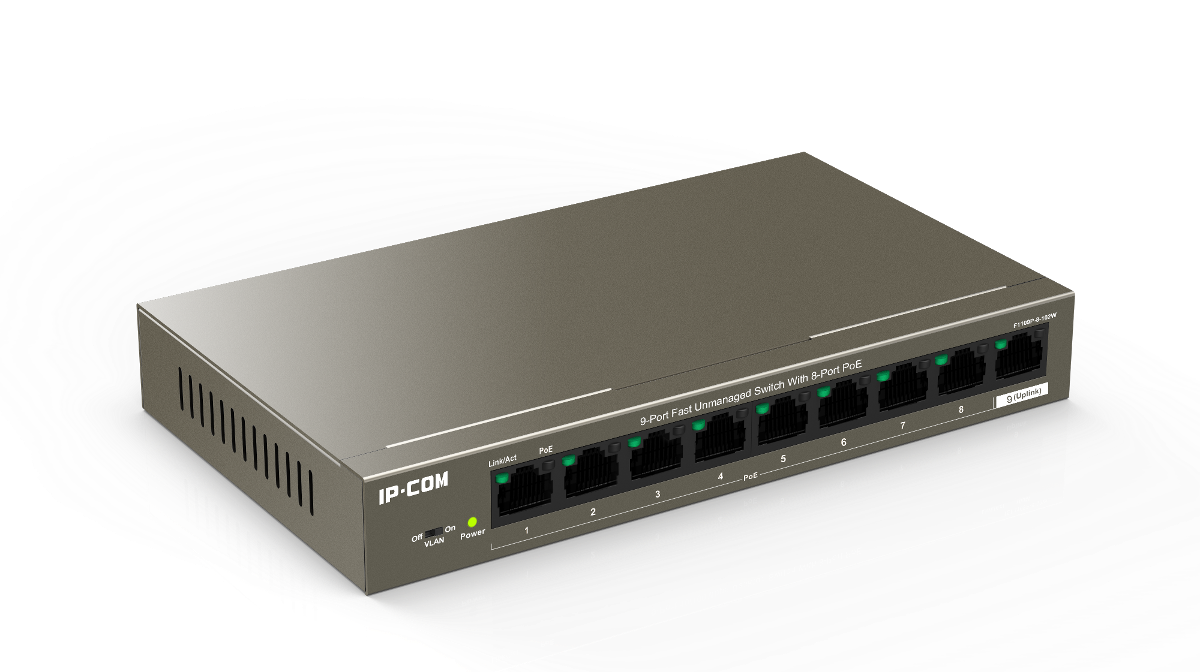

F1109P-8-102W is a IP-COM switch that offers 9 10/100M RJ45 ports. Ports 1-8 comply with the IEEE802.3af standard (maximum PoE power output :15.4w) and 802.3at standard (maximum PoE poweroutput: 30W). The switch offers a maximum PoE poweroutput of 92W and can supply power to exchange data with APs, IP cameras, and IP phones through CAT5e cables. It also provides simple management modes such as Standard, VLAN. Thus, F1109P-8-102W is a perfect choice for SMBs, hotels, and office to have small-scale HD surveillance and wireless networking.
Interface : 8 10/100M Base-T ports(Data/Power), 1 10/100M Base-T ports(Data)
Port Lightning Protection : 6KV
Store and forward : Yes
Exchange Capacity : 1.8 Gbps
Packet forwarding rate : 1.34Mpps
MAC Address Table : 2K
PoE supply management : Port 1-8 support IEEE802.3at/af PoE standard
PoE through pin : 1 2 4 5 +;3 6 7 8 -
Voltage input range :
AC: 100-240V~50/60Hz
DC: 51V 2A
Dimensions : 177.5*104*26mm( W x D x H )
Power Consumption :
In full configuration: 102W
PoE Max Power Supply: 92W
|
|
|
|
